Equipment function

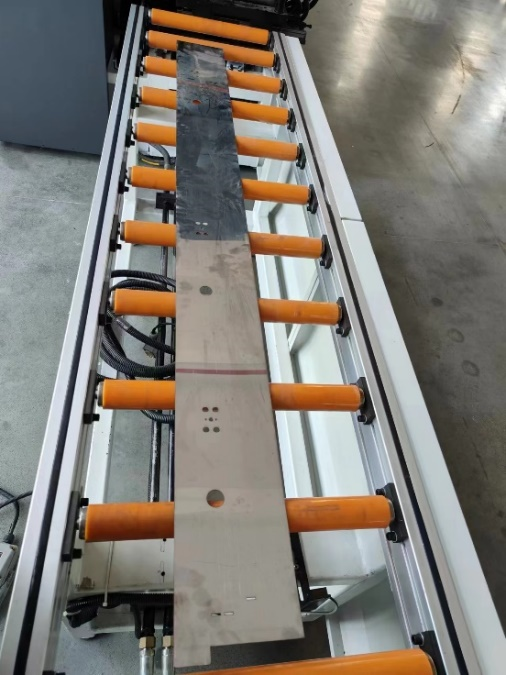

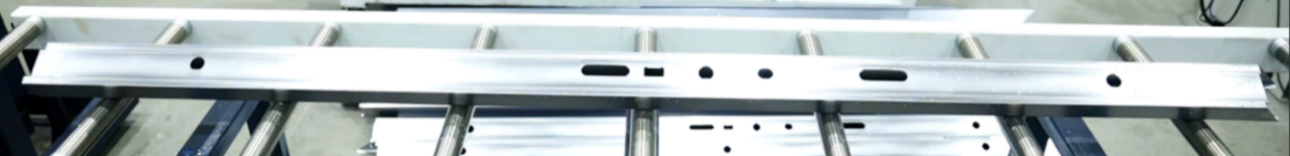

Used for one-time stamping of locking holes, hinge holes, installation holes, and corner cutting holes for various steel and stainless steel door frames, front and rear door panels, such as anti-theft doors, fire doors, medical doors, and purification doors.

Principles of homework

After the main material is loaded and fixed, stamping is achieved through foot or electric means.

Product features

●  Can be combined as needed to achieve various functions;
●  The stamping die can be replaced, and the single head punching machine has a low investment cost for early equipment;

technical parameter

Detail display

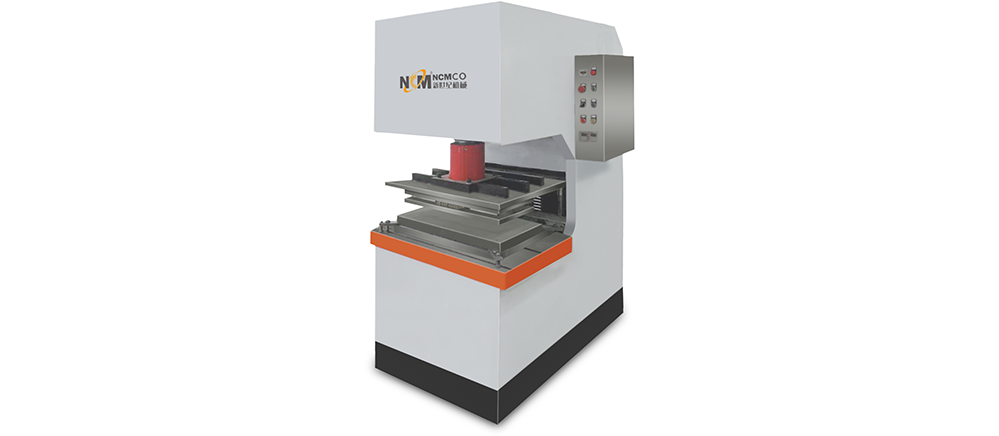

1. Host rack: The main structure of the device, which is the backbone of the device

●  Through finite element analysis, the deformation trend of the machine tool under working conditions is analyzed to guide the design of a reasonable bed structure, ensure the consistency of the mold working center, and improve the accuracy of the parts;

2. Stamping device: power output for stamping

●  The stamping method adopts hydraulic pressure, with greater force and no burrs on the stamping surface;
●  Each hydraulic component adopts imported or domestic first tier brand products, which are durable and long-lasting;

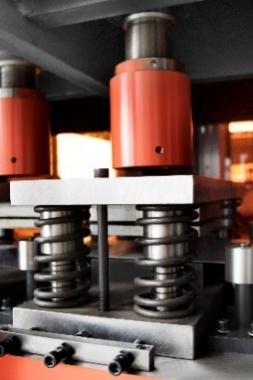

3. Punching mold: A mold for forming holes, which can be customized according to needs

●  The punching molds are all made of Cr12Mov material, which is quenched and then processed by wire cutting, making them durable and long-lasting;
●  The punching mold is easy to disassemble and assemble, making it convenient for subsequent on-demand mold replacement;

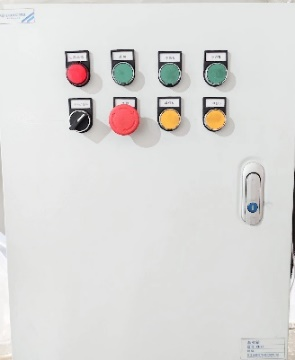

4. Electronic control system: The device control system is the brain of the device

●  Adopting a PLC control system, the stamping station can be customized. After setting up, it can be achieved through foot or button pressing, achieving integrated stamping with flexible operation and low skill requirements for workers;

Random data

The cooperation that the user should provide

        1. Power supply: 380V, 50HZ, voltage fluctuation range from -5% to+10%; When there is a significant fluctuation in voltage, users must be equipped with a voltage regulator, otherwise it will cause low-voltage electrical appliances to be in an abnormal working state, reduce or damage the service life of electrical components, scrap processed products, motor alarm causing shutdown, computer hard disk damage, and other problems.
        2. Gas source: Output 0.6Mpa or above, dry and clean compressed air, with a supply rate of 0.3 cubic meters per minute; If the air dryness is not sufficient, users should be equipped with a refrigerated dryer, otherwise there may be problems such as water ingress into the pneumatic components causing increased piston friction resistance, wear of the sealing ring leading to air leakage, especially in winter, which is prone to icing and exacerbates damage to the pneumatic components.
        3. Environmental temperature: 0 ° C to+40 ° C; Below 0 ° C, it can cause components such as oil-water separators and air tanks that may contain water to freeze. Lubricating oil becomes too viscous due to low temperature, affecting lubrication effectiveness and leading to component damage or failure.
        4. Environmental humidity: Relative humidity of 20-80% RH (non condensing).
        5. Stay away from strong vibration sources and electromagnetic interference; If the distance is too close, the user must be equipped with a filter, otherwise it may cause problems such as computer screen flickering, LED flashing, driver alarm, encoder abnormality, or interference with other nearby devices.
        6. An environment with little dust and no harmful or corrosive gases.
        7. Do not cut off power while the equipment is in operation and maintain voltage stability.
